General Purpose Engine

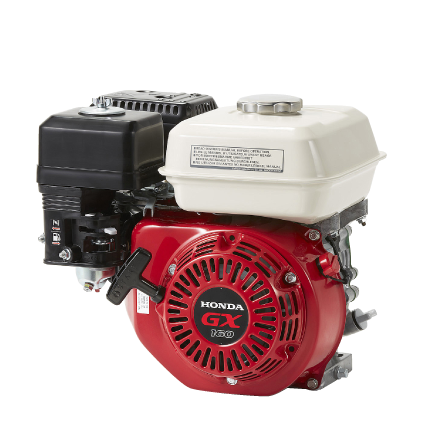

Engine - GX160T2 SD

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

  • Honda OHV commercial grade engine
  • 4kW (5.5HP)/3600rpm and 163 cm³ Displacement
  • Fuel efficiency
  • 1 year warranty

Common Applications

  • Pressure washers
  • Commercial lawn and garden equipment
  • Tillers / cultivators*
  • Generators*
  • Construction / industrial equipment*
  • Agricultural equipment
  • Water pumps
More
Rp 4,544,000
See Dealer Inquiry
Specifications
Specifications
Engine type
Air cooled, 4-stroke, OHV , 25° inclined, single cylinder, horizontal shaft
Displacement (cm3)
163 cm³
Bore and stroke
68.0 x 45.0 mm
Compression ratio
9.0 :1
Gross power (SAE J1995)
4kW (5.5HP)/3600rpm
Net Power (SAE J1349)*
3.6kW (4.8 HP)/3600rpm
Max. Net Torque (SAE J1349)*
10.3 N.m (1.05 kgf.m, 7.6 lbf.ft)/2500 min-1 rpm
Fuel tank capacity
3.1* / 3.6** Liters Gasoline Oktan 86 or higher
Ignition system
Transistorized Magneto ignition
Spark plug
BPR6ES, (NGK) W20EPR-U (DENSO)
Starting system
Recoil starter
Air cleaner
Semi dry type
Oil Capacity
0.58 Liters SAE 10W-30 (API SE or Later)
Dimensions
312 x 362 x 346 mm
Dry Weight
15 kg
Data Specifications are subject to change at any time without prior notice

* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 4,500, 4,000 or 3,600 rpm (Engine Net Power) and at 3,000 or 2,500 rpm (Engine Max. Net Torque).

Mass production engines may vary from this value . Actual power output for the engine to be mounted on the manufacture of the final machine will vary depending on many factors , including the operating speed of the engine in application , environmental conditions , maintenance and other variables.
