Water Pump

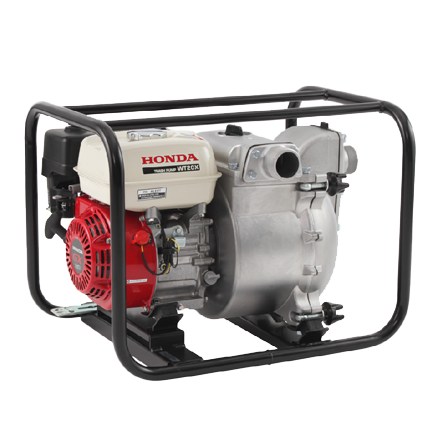

Trash Pump - WT20XK4

Honda's WT20 trash pump is ideal for job sites and high volume applications. Specially designed for job sites and applications where high volume trash water capacity is needed. powered by Honda GX series commercial grade engine which is easy starting and provides ample power for the toughest conditions.

  • Heavy-duty 2" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 190 gal./min capacity
  • Cast iron volute and impeller
  • Quick clean out port
  • 1 Year Waranty

Specifications

Model WT20XK4
Dimension
Length (inch / mm) 24 / 620
Width (inc / mm) 18 / 460
Hight (inch / mm) 18 / 465
Weight (kg) 47
Engine
Type GX160T2
Max. Output 4.0kW (5.5HP)/3600rpm*
Max. Net Output 3.6kW (4.8HP)@3600rpm**
Fuel Tank Capacity 3.6 liter
Pump
Type Centrifugal;self-priming
Suction port diameter (inch / mm) 2 / 50
Discharge port diameter (inch / mm) 2 / 50
Total Head lift (ft. / m) 98 / 30
Suction Head lift (ft / m) 26.4 / 8
Discharge capacity (gal./min / L/min) 190 / 710
Continuous Operation Hour (h) 2.5

*  Calculation Based on SA J1995

** The engine power output data shown here is measured with a typical engine at 3,600 rpm (net power) based on the SAE J1349 standard. The actual power output of the engine installed in a complete machine may vary depending on the engine speed, use environment, maintenance conditions, and other factors.
