Water Pump

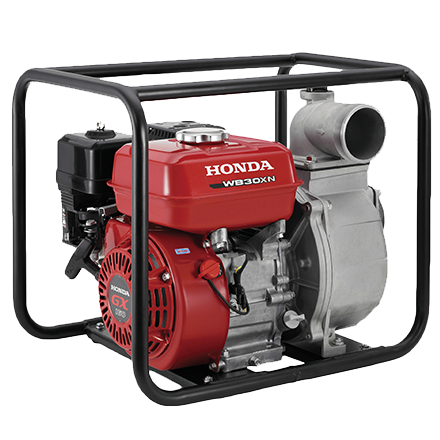

Water Pump-WB30XN NF

As one of the most impressive pumps in Honda's range, the WB30XN Volume Water Pump has been designed with the end user in mind, for whatever application you want to use it in.

Honda 4-Stroke GX160 engine that powers the WB30XN ensures easy starting, easy usage, outstanding fuel economy, low emission and long-lasting durability.

- General purpose 3" water pump
- Easy starting
- Honda OHV commercial grade engine
- Transistorized Magneto Ignation system
- 1.100 L/min. of maximum pumping capacity
- Full frame design
- Fuel efficiency
- 1 year warranty & SNI Certified

More
Rp 5,752,000
Pump
Type
Self priming, centrifugal pump
Suction aperture
80 mm ( 3.1 Inch )
Discharge aperture
80 mm ( 3.1 Inch )
Total head lift (Max.)
23 m
Suction head lift (Max.)
7.5 m
Maximum discharge capacity
1.100L/min
Self feed time
150 sec./ 5 m
Engine type
4-stroke, overhead valve single cylinder, inclined by 250
Displacement
163 cm3
Bore and Stroke
68.0 x 45.0 mm
Compression ratio
8.5 ± 0.3
Net Power (SAE J1349)*
3.6kW (4.8 HP)/3600 min-1 rpm
Max. Net Torque (SAE J1349)*
10.3 N.m (1.05 kgf.m, 7.6 lbf.ft)/2500 min-1 rpm
Fuel consumption
1.4/h
Fuel tank capacity
3.1
Fuel used
Unleaded Gasoline (Oktan 86 or higher)
Oil capacity
0.58
Air cleaner
Semi dry type
Dimension
Length (mm)
510 mm
Width
385 mm
Height
435 mm
Dry Weight
26.55 kg
Engine
Model Name
GX160H1
* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3,600 rpm (Engine Net Power) and at 2,500 rpm (Engine Max. Net Torque).

Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
